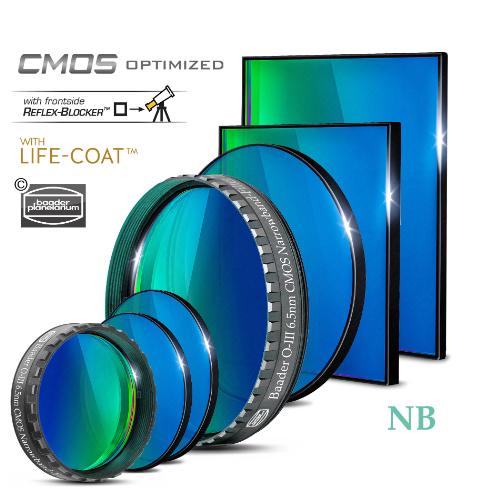

Filtro Baader Narrowband O-III (6.5nm) – Optimizado CMOS
- Baader O-III Narrowband Filter – Precision Grade
- 6.5 nm FWHM, recomendado para sistemas ópticos extremedamente rápidos, de f/10 to f/3.5
- Reflex-Blocker ™, revestimiento duro y pulido planeópticamente, con bordes de revestimiento sellados (Life-Coat™)
- Bordes ennegrecidos alrededor, con indicador de lado de plomo del filtro en forma de borde exterior negro en el lado del telescopio
- Optimizado para cámaras CMOS modernas, pero igualmente excelente para tecnologías de cámaras CCD

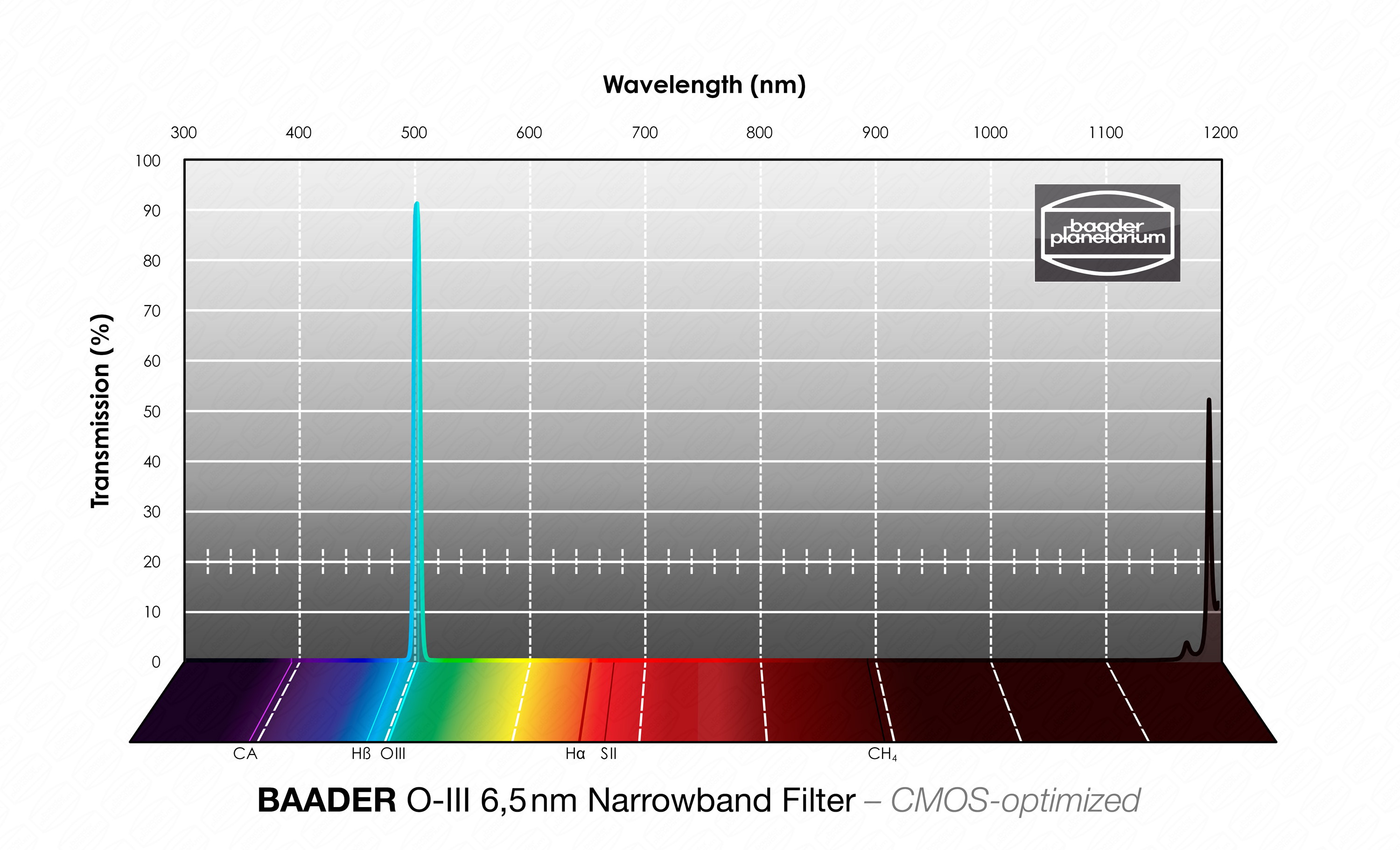

Curva de transmisión
 |
Especificaciones técnicas:
| FILTER SIZE | 1 25 inch | 2 inch | 36mm. |
|---|---|---|---|
| MANUFACTURER | Baader Planetarium | Baader Planetarium | Baader Planetarium |
| SKU (#) | 2961175 | 2961178 | 2961177 |
| EAN CODE | 4047825047120 | 4047825047151 | 4047825047144 |
| WEIGHT (KG) | 0.01 | 0.01 | 0.00 |
| TRANSMISSION RANGE | O-III | O-III | O-III |
| FILTER THICKNESS (WITHOUT CELL) | 2 mm | 2 mm | 2 mm |
| HBW (HALFBANDWIDTH) | 6.5 nm | 6.5 nm | 6.5 nm |
| CWL (CENTRAL WAVELENGTH) | 500,7 nm | 500,7 nm | 500,7 nm |
| AR-COATING | Reflex-Blocker™ hard coated, planeoptically polished | Reflex-Blocker™ hard coated, planeoptically polished | Reflex-Blocker™ hard coated, planeoptically polished |
| SPECIAL FEATURES | CMOS-optimized with Life-Coat™ | CMOS-optimized with Life-Coat™ | CMOS-optimized with Life-Coat™ |
| FILTER USAGE | CMOS, CCD, O-III | CMOS, CCD, O-III | CMOS, CCD, O-III |
| FILTER MOUNTED | Mounted (LPFC 6mm) | Mounted (LPFC 6mm) | Unmounted |
| TYPE OF FILTER | Narrowband | Narrowband | Narrowband |
| SINGLE OR SET? | Single Filter | Single Filter | Single Filter |
| FILTER SHAPE | round | round | round |
Disponibles en otras medidas y formatos. Si no encuentra la medida que desea, consúltenos en info@lunatico.es.
